CT007

Concealed Pendent Sprinkler

The CT007 Standard Response Concealed Pendent Sprinklers (Ret. Figure ) are automatic sprinklers of the frangible bulb type. They are “standard/quick response-standard orifice spray sprinkler’ intended for use in fire sprinkler systems designed in accordance with the standard installation rules recognized by the applicable Listing or Approval agency (e.g., UL Listing is based on NFPA 13 requirements). The Concealed Pendent Sprinklers all produce a hemispherical water distribution pattern below the deflector.
Datasheet

CT021 - CT022

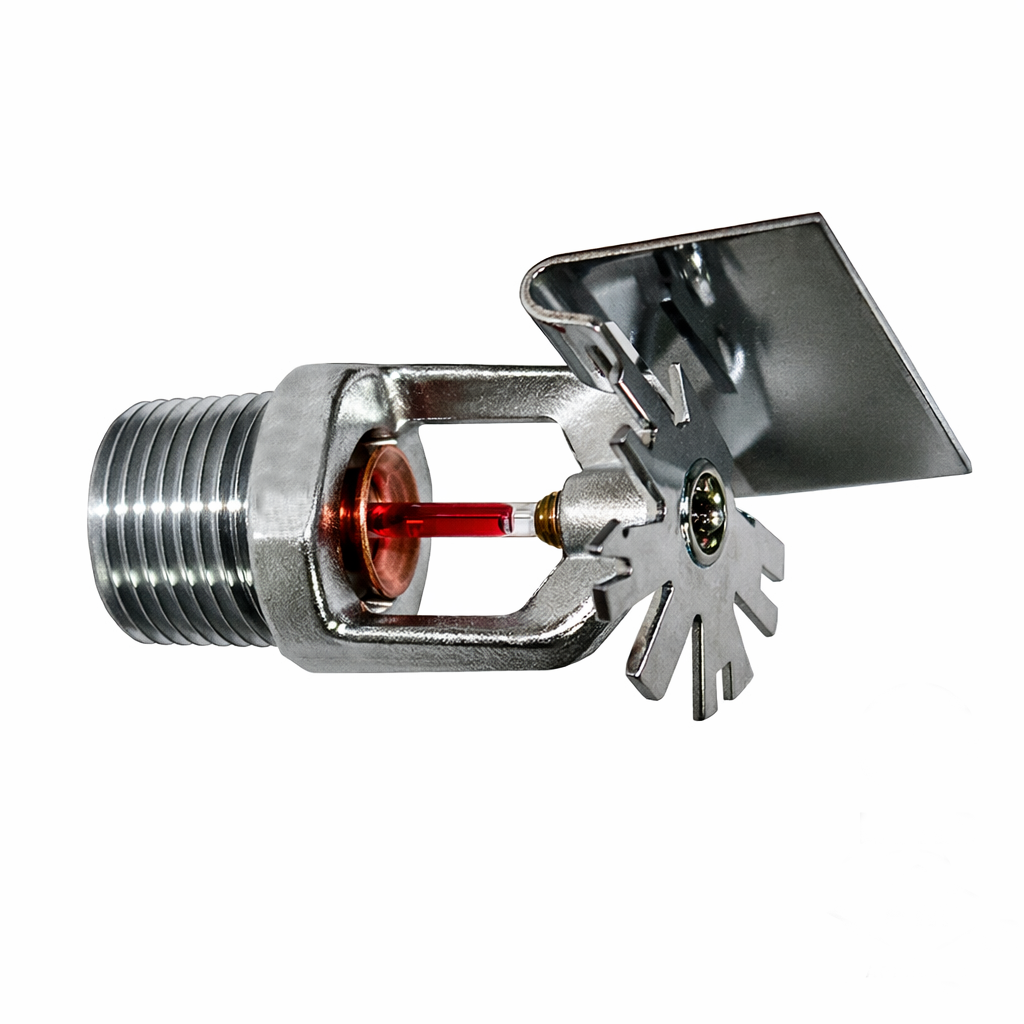

Horizontal Sidewall Sprinkler

The Standard/ Quick Response Horizontal Sidewall are generally used in lieu of pendent and upright sprinklers because of building construction or installation economic considerations. They are designed for installation along a wall or the side of a beam and just beneath a smooth ceiling. Installed with their centerline of waterway horizontal, these sprinklers produce a quarter-spherical water discharge pattern that is predominately directed downward and outward from the deflector; however, a portion of the spray is also directed towards the back wall.
Datasheet

CT025 - CT026

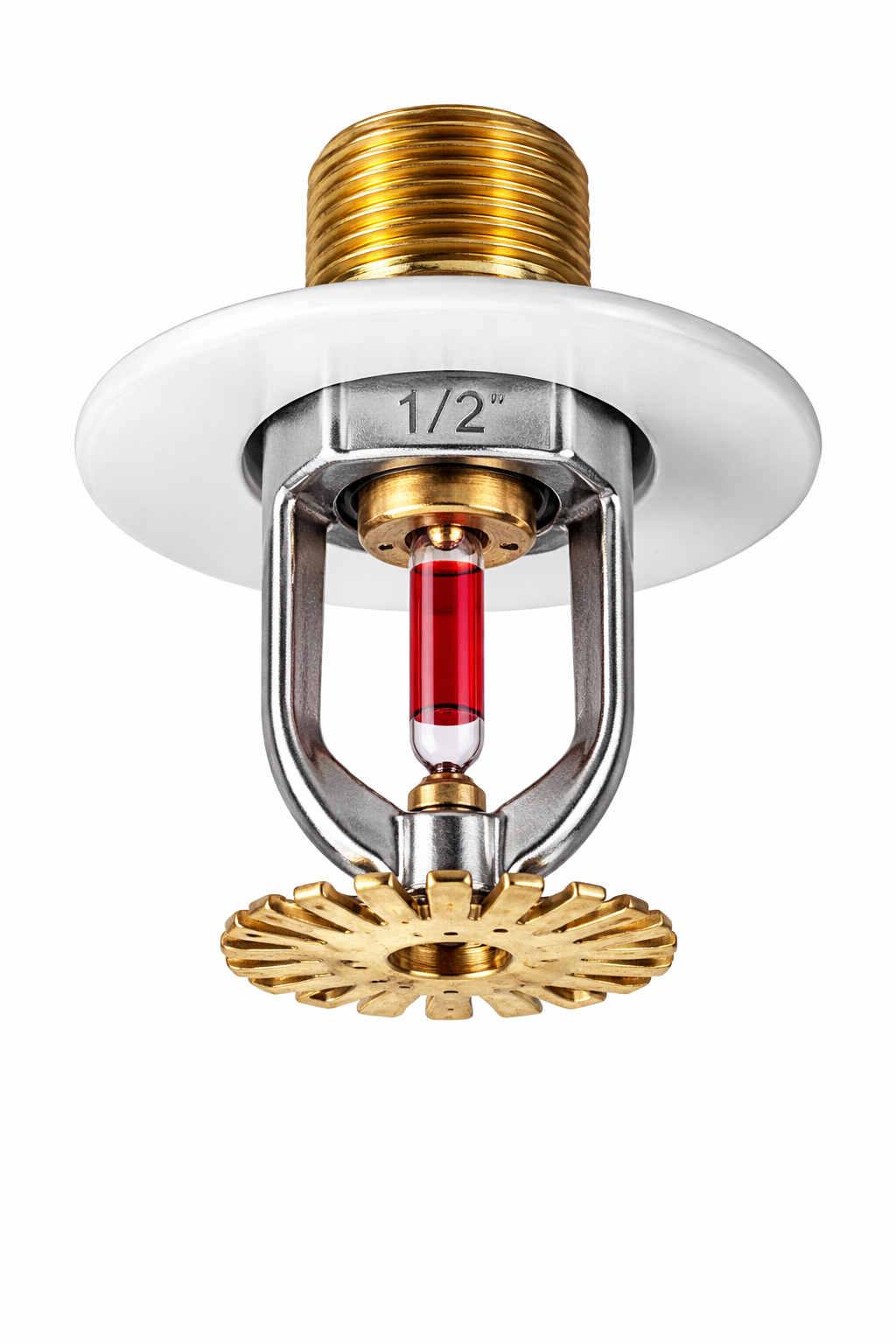

Pendent Sprinkler

The Standard/ Quick Response Pendent are automatic sprinklers of the frangible bulb type. They are “standard/ quick response – standard orifice spray sprinkler” intended for use in fire sprinkler systems designed in accordance with the standard installation rules recognized by the applicable Listing or Approval agency (e.g., UL Listing is based on NFPA 13 requirements). The Pendent Sprinklers all produce a hemispherical water distribution pattern below the deflector.
Datasheet

CT023 - CT024

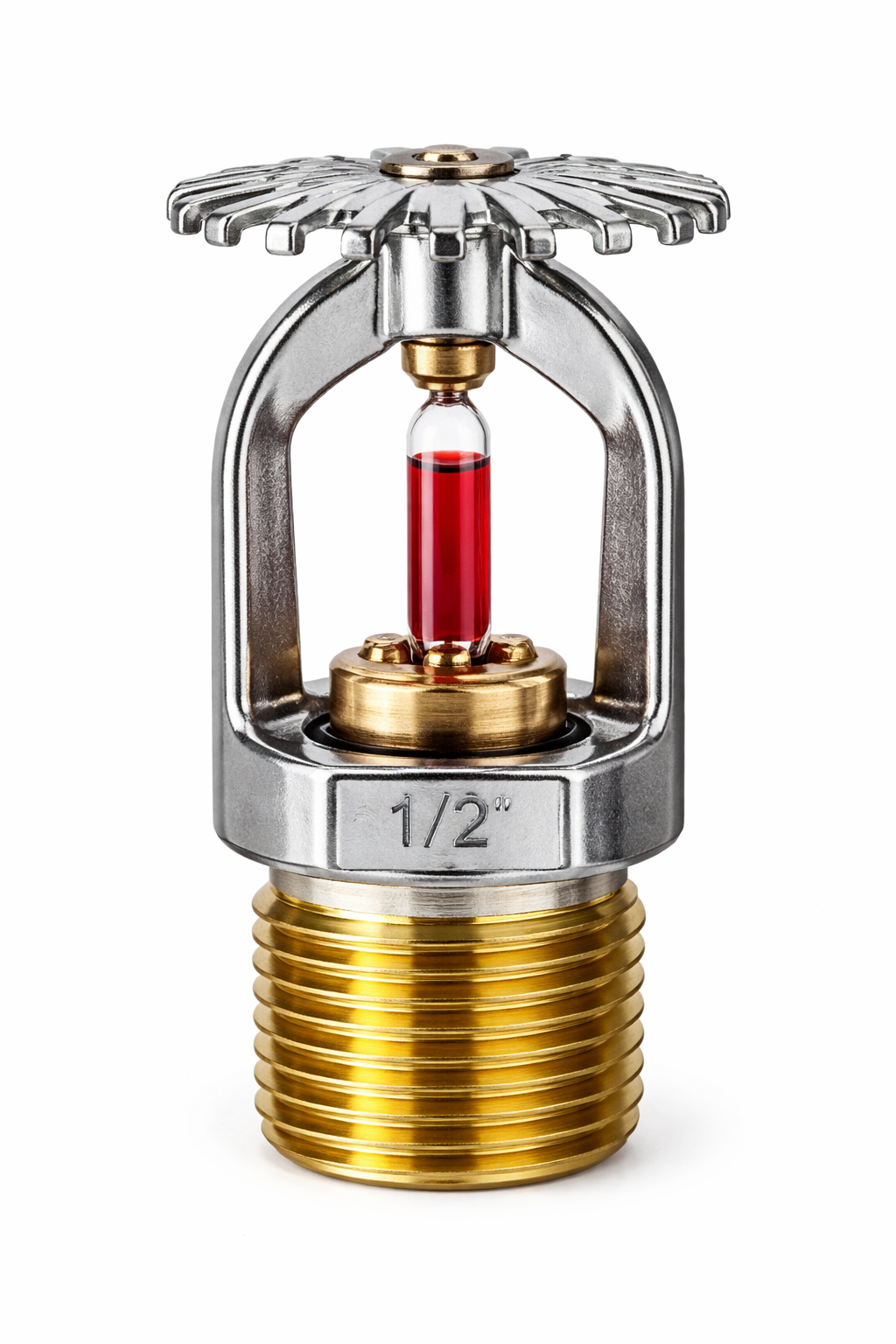

Upright Sprinkler

The Standard/ Quick Response Upright are automatic sprinklers of the frangible bulb type. They are “standard/ quick response – standard orifice spray sprinkler” intended for use in fire sprinkler systems designed in accordance with the standard installation rules recognized by the applicable Listing or Approval agency (e.g., UL Listing is based on NFPA 13 requirements). The Upright Sprinklers all produce a hemispherical water distribution pattern below the deflector.
Datasheet
