CF-500

DRY-BARREL FIRE HYDRANT

High-performance fire hydrants are vital for combating fires as they provide a ready supply of water. Chief Fire water works products serve the needs of both contractors and municipalities with a complete line of UL listed, FM Approved fire hydrant that meet stringent AWWA standards. Our Hydrants are an essential firefighting tool for preserving lives and property and feature:

  • NFPA 1963 standard nozzle threads.
  • Traffic feature with duplex stainless-steel safety stem coupling.
  • Excellent flow characteristics.
  • Multiple nozzle configurations.
  • Dry top design with O-ring sealed oil reservoir.
  • Dual auto-frost bronze drain valves as standard.
  • UL 246 Listed and FM 1510 Approved.

Working Pressure

250 PSI

Temperature

-10 ° C to 80 ° C

Datasheet

CF-600

POST INDICATOR VALVE

Chief Fire offers a full line of “open−shut” indicator posts that are UL Listed and FM Approved for use with 4″−12″ non-rising stem gate valves in buried service. They are recommended for use in fire protection systems or installations where it is critical that valve status is known. Please refer to Chief Fire technical datasheets for engineering and installation information​

  • Meet or exceed the requirements of NFPA 24 standard.
  • Indicates the state of the valve OPEN or SHUT position.
  • Target nut to allow 13 to 51 turns for CF-600.
  • “L” shaped wrench handle fitted with a secure padlock (provided by the user).
  • Protected windows sign plate.
  • Easily adjustable indicator OPEN and SHUT targets sign plate.
  • UL/ULC 789 Listed, FM 1110 Approved.

Size

Size 4" to 16"

Datasheet

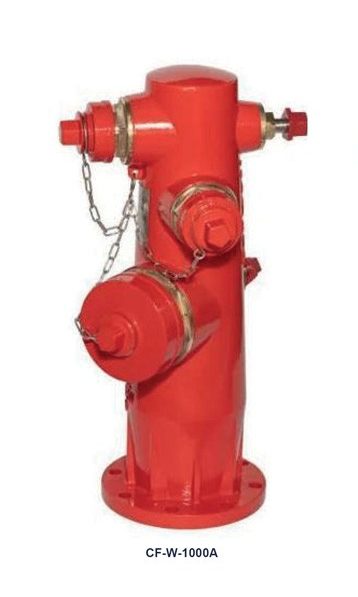

CF W 1000A

wet-BARREL FIRE HYDRANT

Chief Fire, US Based company specializes in the manufacture of UL / FM valve, hydrants Wet & Dry  barrels and accessory products for fire protection piping systems.
Chief Fire wet barrel hydrant is designed to be trouble free and easy to maintain, and meets or exceeds the requirements of the AWWA C503 standard for wet barrel fire hydrants.
The hydrant is rated for a working pressure of 250 psi.

Datasheet

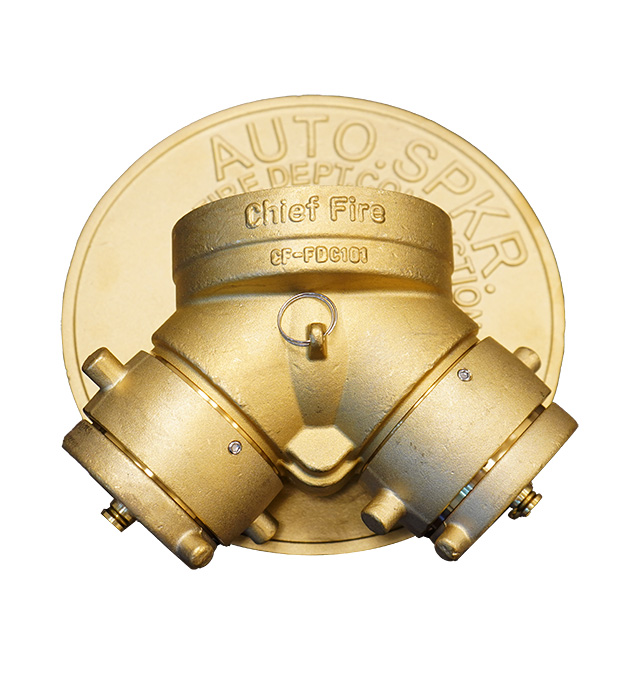

CF-FDC101

Single Clapper Siamese

The Straight Pattern Fire Department Connection is UL Listed and FM Approved. Manufactured from brass* components to increase service life. The single clapper design features brass clapper and brass seats within a cast brass body. The 21/2 inlets are pin lug design for ease of use and compatibility with local fire service districts. Swivel gaskets are included. Breakable caps or plugs should be installed to protect threads and prevent debris from being accidently introduced into the water way.
Datasheet
